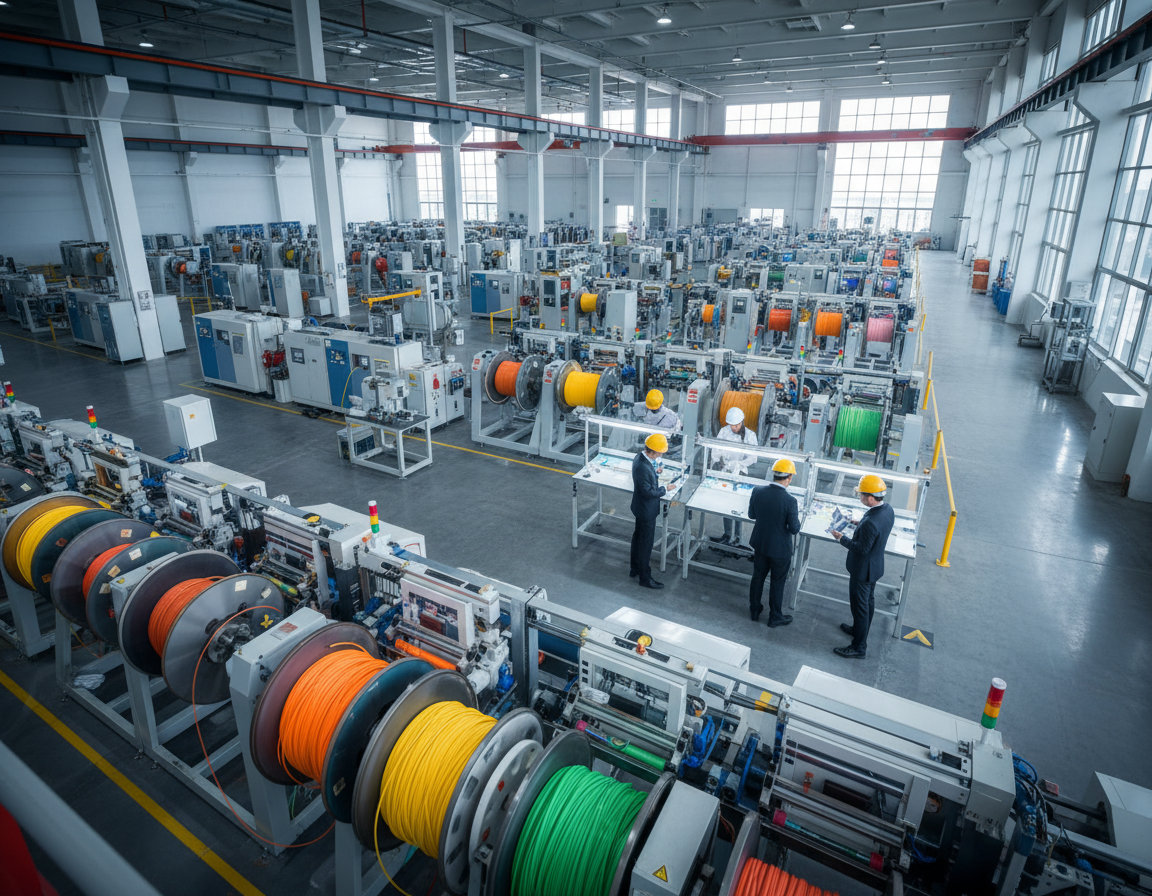

An FTTH Cable Production line is a unified series of modules that converts glass fiber into finished drop and distribution products with reliable uniform quality.
Compact Fiber Unit
This opening section supports operations leaders, process engineers, procurement teams, and students in the United States who assess how industrial manufacturing equipment converts fine fiber into rugged cable assemblies for service and communication networks.
At its core, the full-chain objective is simple: safeguard the fiber, maintain low optical loss, add strength for installation, and produce a cable that withstands inside and outside exposure.
Professional-grade equipment provides steady tension control, coordinated drive systems, standardized process windows, and clear documentation for customer acceptance. This guide helps align the line setup, materials, and validation plan to the target product instead of ordering equipment first and backfilling requirements afterward.
Readers will map stages such as fiber prep, buffering and coating, stranding, integration of strength elements, sheathing (outer-jacket extrusion), optional armor, and final validation and packaging.
Key points: A well-specified line reduces defects and ensures predictable delivery. Choose process alignment before purchasing machines to reduce time and cost.
How A Fiber Optic Cable Production Line Operates Today
Where last-mile drop and distribution needs meet factory reality.
Modern production lines convert fine glass fiber into finished products used in U.S. broadband deployments. Rising last-mile drop and FTTH drop demand pushes high volumes, so manufacturers focus on consistent handling and standards-based output.
Core Modules, Material Flow
Material progresses through a defined sequence: pay-off → guiding + tensioning → secondary coating/coloring → organization/SZ stranding → strength member feed → jacketing and sheathing → cooling/curing → take-up and in-line testing.
Modules And Outcomes
Stable fiber handling reduces attenuation and maintains data and communications integrity. Consistent jacketing helps installation and connector preparation. Inline monitors catch loss events before reels leave the line.
- Indoor vs. outdoor: different jacket compounds and buffering.
- Armored variants add steel tape or wire for rodent and crush resistance.
- Drop designs favor tight-buffered fibers and simplified connector prep.
Buyers should treat lines as modular systems. Factories add armoring or omit steps to match the product type. Output limits often come from curing and dimensional stability, not simply motor speed.
Define Your Product And Data Standards Before You Buy Equipment
Kick off with a clear product definition that specifies the cable type, core count, intended service environment, and target user scenarios. Early definition limits which modules the line needs, from tight-buffer units to SZ stranding capability and jacket extrusion systems.
Select Standards & Measurable Targets
Choose fiber standards such as ITU-T G.652D class or bend-insensitive G.657A1/A2 based on required bend performance and route constraints. Document optical loss budgets, tensile strength, crush and bend limits, and environmental durability before vendor selection.
- Map the exact product type and core/fiber count to define required modules and control needs.
- Set loss budgets and strength targets to steer material selection.
- List required materials (buffer polymers, jacket compounds) and verify U.S. sourcing availability.
Data Standards, Traceability & Validation
Translate targets into factory information: captured process variables, batch traceability, and customer-required acceptance test reports. Use R&D pilot runs to validate settings and cut scale-up time.
Fiber Coloring Machine
| Goal | Factory Impact | Typical Response |
|---|---|---|
| Low loss | Tension + alignment control | Inline attenuation checks |
| High strength | Strength member choice | Integrate aramid or metal |
| Bend resistance | Choice of fiber type | Use G.657 variants |
Build Quality Into Optical Fiber: Core, Cladding, Coating Essentials
High-quality optical performance starts in the glass, where core purity and cladding design set the ceiling for signal loss.
The core and cladding make up the core layer structure: an ultra-pure silica core carries the light while a lower-index cladding confines it. This geometry underpins low-loss transmission and stable optical behavior once cabled.
From Preform To Drawn Glass Fiber
Manufacturing starts with preform laydown and consolidation. Moisture removal via a high-temperature furnace cuts defects that drive loss upward.
The draw process pulls glass into a micron-scale strand. Geometry control here ties directly to stable attenuation and predictable transmission performance. A single blank can yield roughly 5 km of fiber, so stability saves time and cost.
Primary Coating, Color Coding
Primary coating protects against scratches and handling damage; it is not the main strength element. Color ID makes splicing, troubleshooting, and downstream fiber management easier.
- Preform consolidation: remove contaminants and moisture.
- Draw: control diameter and tension to keep loss low.
- Coating and color: protect and identify each fiber.
| Layer Type | Purpose | Buyer Checklist |
|---|---|---|
| Core layer | Transmit light with minimal attenuation | Specify purity and loss specs |
| Cladding layer | Contain light, manage modal behavior | Confirm index profile and geometry |
| Primary coating layer | Scratch protection; color identification | Verify coating adhesion and color coding |
FTTH Cable Production: Step-By-Step Line Setup From Buffering To Sheathing
A practical line setup takes each fiber from pay-off through buffering, stranding, and the outer jacket to a finished reel.
Secondary coating & fiber coloring stations apply dual-layer UV-cured coatings (≈250 µm) and one-to-twelve-channel color coding for identification and traceability. Consistent UV cure rates and steady web tension reduce mix-ups and rework.
Buffering, Materials
Tight buffering (600–900 µm) protects handling and simplifies connector work. Choosing Hytrel, PVC, or LSZH changes flexibility, temperature range, and flame/smoke behavior.
SZ Stranding & Organization
SZ stranding uses alternating lay to balance geometry and give cable flexibility. Servo control (up to 24 fibers) keeps lay pitch consistent and lowers loss risk.
Strength Members, Jacketing
Aramid yarn is a common tensile element; it provides pull strength without stressing the fibers during installation.
Outer jacket extrusion with PVC, PE, or LSZH follows. Typical speeds are 60–90 m/min and require tight OD and concentricity control.
Armoring & Control Points
When crush or rodent resistance is required, add steel tape or wire armor with adjustable tension control. Operators track tension, cure state, concentricity, OD, and cooling to maintain quality.
| Step | Primary Control | Typical Range |
|---|---|---|
| Secondary coating process | UV curing and tension | ≈250 µm, high cure consistency |
| Tight buffer stage | Choice of material | 600–900 µm (Hytrel/PVC/LSZH) |
| Sheathing/jacketing | OD/concentricity | 60–90 m/min |
Optimize Production Speed And Process Control With Modern Automation
When factories push for 24/7 output, synchronized controls and tension systems become the backbone of reliable manufacturing.
PLC, HMI & Closed-Loop Tension For Steady Operation
Modern lines use Siemens PLC/HMI platforms to synchronize modules, manage recipes, and log process data. Closed-loop tension control protects the fiber during starts, stops, and speed changes.
Fiber Draw Tower
Match Speed To Curing & Dimensional Control
Line speed often tops out when curing, cooling, or extrusion dimensional control can’t keep pace. UV cure completeness, water-trough stability, and chiller capacity define the real limit.
Layout, Changeover, And Procurement
Plant layout impacts uptime: proper pay-off/take-up placement and protected fiber paths reduce damage and shorten changeovers.
- Use quick-change tooling and documented setup steps to speed changeovers.
- Specify industrial power (380 V AC ±10%) and typical ≤55 kW load when ordering equipment.
- Require remote diagnostics, parts availability, and responsive service from the equipment company.
| Focus | Operational Benefit | Typical Target |
|---|---|---|
| Module synchronization | Less scrap, more repeatable runs | Siemens PLC/HMI platform |
| Tension control | Protects fiber; stable loss | Closed-loop with high accuracy |
| Layout & changeover | Reduced downtime | Quick-change tooling and staging |
Testing & Quality Control To Reduce Loss And Improve Delivery Reliability
Robust testing and clear quality control turn raw fiber into reliable, field-ready cable reels.
Start with optical verification. Inline attenuation testing and return loss checks confirm signal performance before reels exit the line.
Optical Checks & Signal Integrity
Attenuation testing is the primary guardrail against performance complaints. Higher loss readings often indicate handling damage, microbends, or contamination.
Return loss checks target reflections that affect sensitive links and tight network margins.
Mechanical, Environmental Validation
- Tensile pull tests validate strength members and safe installation loads.
- Crush and bend tests mimic real-world stresses during installation.
- Temperature cycling, moisture soak, and vibration tests reduce risk for outdoor and aerial routes.
| Test | Objective | Typical Result |
|---|---|---|
| Attenuation test | Measure attenuation per km | Pass/fail versus spec |
| Mechanical | Validate pull, crush, and bend | Installation performance rating |
| Environmental validation | Recreate field conditions | Durability verification |
Traceability ties raw material lots, in-line data, and final test results to reel IDs. Correct reeling, labeling, and protective packaging preserve quality and speed customer acceptance and delivery.
Conclusion
A strong manufacturing plan connects product targets with the line modules and control limits needed for reliable output. Define the FTTH product, service environment, and measurable specifications before choosing equipment or layout.
Fiber fundamentals (core, cladding, coating) establish the optical baseline. Careful upstream handling preserves data integrity and keeps final quality within acceptance limits.
Configure buffering, organization/stranding, strength members, and jacket choices to match installation realities. Use automation and closed-loop controls to maintain speed, reduce scrap, and keep delivery predictable in U.S. markets.
Operational discipline matters: use comprehensive testing, reel-level traceability, and documented quality systems so customers can accept reels fast. Next step: convert these points into a purchasing checklist (spec targets, utilities, layout, and acceptance tests) before requesting quotes or trials.
