Almost around seventy percent of service technicians now prefer compression-style fittings over soldering for hard-to-reach or gas-service installations. That trend reinforces the major need for dependable, leak-resistant connections on today’s job sites.
Purchase 1 4 Compression Fittings
This streamlined guide breaks down Compression Union Brass and related compression fittings found in plumbing, HVAC, and instrumentation work in the U.S.. It provides practical tips on picking the right 1/4 compression fitting, installing brass union fittings, and fixing leaks. It also explains compatibility between materials.
Whether you’re a professional plumber, heating-and-cooling technician, controls engineer, or a capable DIYer, this guide fits your needs. It focuses on practical job scenarios: quick setup, repeat use, and brass unions’ functionality when soldering isn’t practical. We’ll break down 1/4 inch compression fittings and couplers, highlighting their ideal uses.
For parts and supplies, InstallationPartsSupply.com is a go-to supplier for Compression Union Brass components, compression nuts, and olives. They provide matching parts fast. The sections ahead outline sizing, pressure boundaries, and installation tips to avoid leaks and cut down on return visits.
Top Takeaways
- Compression Union Brass delivers a no-solder, reusable join for multiple tubing materials.
- Brass compression union fittings are perfect for tight spaces and on-site repairs.
- 1/4 compression fitting and 1/4 inch compression fitting dimensions are prevalent in plumbing and instrumentation systems.
- InstallationPartsSupply.com carries nuts, ferrules, and union bodies for fast replacement and easy matching.
- Correct selection and installation minimizes seepage, with clear steps included later in the guide.
Brass Compression Union Fittings Explained And How They Work
A brass compression union joins two tubing sections with no solder. It uses a fitting body, a compression nut, and ferrules for a tight seal. The 1/4compression fitting is commonly used in instrumentation, refrigeration, and plumbing service.
Definition And Core Components
The brass compression union is made up of three core parts. The union body accepts tubing on both ends. The compression nut screws onto the body, driving the ferrule (olive) into place. The olive creates a seal by compressing onto the tube’s outside diameter.
Union fittings allow the joining of two tubing ends in a straight run without heat. Each end has its ferrule and nut, allowing for fast joining of different tubing lengths during maintenance or field repairs.
Operating Principle
To assemble, slide the line into the union body and tighten the compression nut. Tightening advances the nut, which forces the ferrule into the body’s angled bore. This motion converts to radial squeeze around the line.
This radial squeeze forms a line-contact seal between the ferrule and the tube. A proper fit delivers a metal-to-metal or metal-to-plastic seal depending upon materials. Incorrect tightening can distort the ferrule or not seat properly, weakening the connection.
Materials And Compatibility Basics
Brass compression unions are appreciated for their resistance to corrosion and ductility. They work well with copper tubing and many potable-water systems. They also work with low-pressure gas lines when assembled with gas-grade PTFE tape and remain accessible.
For higher PSI or corrosive media, stainless fittings are often preferred. Plastic compression connectors are fine for low-pressure water jobs. The 1/4compression fitting is available in brass and stainless steel to match various tubing OD, pressure requirements, and chemical demands.
Compression Union Brass: Benefits, Typical Uses, And Applications
Brass compression union fittings combine durability and practicality, making them a great fit for plumbing and instrumentation jobs. They can be installed rapidly, with no need for the need for heat, making them perfect for confined or fire-risk zones. The 1/4 compression union and compact 1/4compression fittings are favored for their compact, dependable connections.
Key Advantages Of Brass Unions
Assembly is fast and tools-only. No open flame or soldering is needed, reducing time on task and hazards. Many brass compression union nuts and bodies are reusable, saving on repeat service jobs. Ferrules may require replacement after repeated assemblies.
Brass stands up to corrosion and bends slightly under load, creating a secure seal with copper tubing. This reduces galvanic issues when mated to copper or select stainless steel components. Suppliers rate many brass compression union products for generous temperature and pressure ranges, appropriate for both domestic and light-duty industrial work.
Common Applications In The United States
In home plumbing, brass compression union connectors are common under basins, at stop valves, and on water heater connections. The 1/4 compression coupling is commonly used in beverage equipment, ice makers, and small water lines that benefit from easy service access.
Gas service with accessible copper runs sometimes uses brass compression unions for checks and quick disassembly. HVAC and refrigeration techs use brass unions for service lines that must be taken apart and put back together during service.
Instrumentation, lab, and industrial panels use space-saving 1/4compression fittings for sampling, sensing, and air lines. These environments value the 1/4 compression union for leak-resistant joints and fast replacement.
Why Choose Unions Instead Of Other Fittings
Union fittings reduce labor time compared to soldered joints. Without a heat source, work can continue in areas where heat would be hazardous or where rapid return-to-service is required. A brass compression union fitting makes possible adjustment and later breakdown for repairs.
Soldered joints remain more compact and can be cheaper in materials. Union-style fittings offer adaptability and service-call advantages, making them the preferred choice when access, speed, and reuse are priorities. For many installers, a 1/4 compression coupling offers the best balance between compact size and reliable performance.

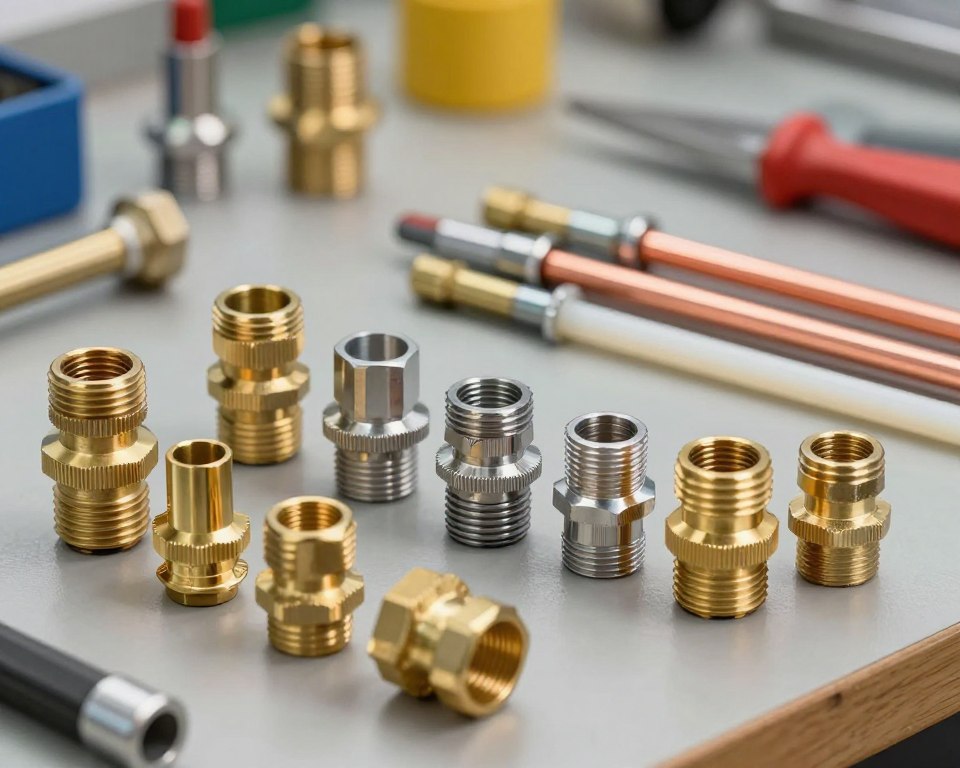

Selecting The Right 1/4 Inch Compression Fitting And Related Sizes
Selecting the right fitting involves understanding the terminology and doing a quick parts check. It’s critical to know if “1/4” refers to the tubing outside diameter or the pipe-thread size before buying. Many catalogs list separate SKUs for tube, union bodies, and inline connectors under the term “1/4 compression coupling”, “1/4compression fitting”, or “1/4compression coupler”.
Understanding common terminology
It’s important to know the core parts: the nut, ferrule (olive), body, and coupler. The compression nut presses the ferrule against the tube and the tapered seat. A union fitting joins two ports, while a coupler fitting links two tube ends in-line. Always refer to the manufacturer’s definitions on product pages for accurate meanings.
Matching tubing OD, ferrule, and thread pitch
The tubing outside diameter must match the ferrule dimensions exactly. Ferrule geometry and body seat taper can differ by brand. Mixing a ferrule from one brand with a fitting body from another can lead to leaks. Ensure that the thread style and pitch match for matching parts. Distinguish between NPT threads and straight, parallel threads that use sealing methods or O-rings.
Material and soft tubing notes
For PTFE and plastic tubing, verify the ferrule type and whether a tubing insert is required to prevent collapse. Brass ferrules seat differently than stainless ferrules. If you need higher resilience to chemical media or heat, consider stainless choices over standard Compression Union Brass.
Pressure and temperature notes
Pressure ratings vary based on material and fitting size. Brass and compact fittings, suitable for instrumentation work, will have lower PSI than larger stainless compression fittings. Always review the manufacturer’s pressure/temperature tables for the specific 1/4 compression coupling or 1/4compression coupler you plan to use.
Quick checklist
- Verify whether “1/4” = tubing OD or pipe thread size.
- Pair tubing OD to ferrule size and brand-specific geometry.
- Check thread type and pitch; note NPT versus straight threads.
- Confirm pressure/temperature ratings for Compression Union Brass or alternatives.
- For PTFE and plastic, verify need for inserts or backup seals.
| Item | Typical Use | Key Check | Material Notes |
|---|---|---|---|
| 1/4 inch compression fitting | Pneumatic, instrumentation | Verify if 1/4 = OD or thread | Brass is common; stainless for higher pressure |
| 1/4compression fitting (compact size) | Miniature lines, beverage systems | Confirm ferrule geometry match | Some makers use brand-specific ferrules |
| 1/4compression coupler | Inline tube connections | Confirm tube OD and internal bore | Plastic tubing may need inserts |
| 1/4 compression coupling | Panel joins, instrumentation | Thread pitch and seal type | Compression Union Brass is widely used |
| Compression Union Brass unions | Inline unions, mid-pressure setups | Maker pressure/temperature charts | Not ideal for very high PSI or harsh chemicals |
Installation Best Practices For Brass Compression Unions
Maintaining a brass compression union’s longevity requires correct installation. Begin by carefully preparing the tubing and parts before any tightening. This up-front attention is key in avoiding seepage and failures down the line.
Preparing tubing for a leak-free seal
Use a quality pipe cutter to cut tubing square. Remove any burrs and sharp edges or surface marks that could create leaks. It’s also important to check the tubing’s outside diameter for roundness. Out-of-round tubing, often seen in coiled lines, can reduce proper seating.
Next, slide the nut and ferrule (olive) onto the tube in the correct order. Always use new ferrules, as they provide a consistent seal, even on copper tube. For soft plastic tubing, consider using tube inserts or supported ferrules to prevent tube collapse.
Proper tightening method
Begin by finger-tightening the compression nut. Then, follow the manufacturer’s recommended turn count. This approach helps create the correct seal without overtightening.
It’s a common myth that tightening more always helps. Tightening too little can lead to a bad seal. Tightening too much, on the other hand, can harm the seal surfaces, threading, or trigger leaks. After initial tightening, pressurize the system and tighten in small steps if slight weeping appear.
Using two wrenches and preventing pipe twist
Brace the body with one wrench while turning the compression nut with another. This method avoids tubing twisting and reduces stress on the joint.
In confined spaces, ensure the fitting body is held and aligned before the last turns. This prevents thread damage and ensures the ferrule installation is correct. Proper technique keeps the fitting from distortion and ensures a good seal.
| Step | Action | Why it matters |
|---|---|---|
| 1 | Square cut, deburr, inspect OD | Prevents leak channels and ensures even compression |
| 2 | Slide nut and new ferrule onto tubing | Right ferrule setup makes sealing predictable |
| 3 | Hand-tighten, then add the specified turns | Creates a line-contact seal without damage |
| 4 | Two-wrench method: brace body, turn nut | Stops tube twist and lowers mechanical stress |
| 5 | Pressure-test and adjust in small steps | Stops weeping without over-tightening |
Troubleshooting Leaks And Maintenance For Compression Unions
This section delves into frequent leak causes and straightforward fixes for Compression Union Brass connections. It helps you with checking the issue, deciding on additional tightening, part replacement, or sealing method changes. The aim is to ensure a secure, durable connection for 1/4 compression fittings and other sizes.
How Tight Should You Make A Compression Fitting?
Achieve a watertight seal without deforming tubing or ferrules by tightening the nut to the proper point. Many manufacturers recommend turns beyond finger-tightness over torque values. For copper tube, stop tightening when resistance is felt and apply only a few small quarter-turns with a wrench.
Excessive tightening can misshape ferrules, score tubing, and make difficult later disassembly. Over-tightening is a frequent cause of seepage and harm to thread surfaces on Compression Union Brass parts.
Steps For Fixing A Leaking Compression Fitting
Start with the easiest step: hold the fitting body firm and tighten the nut a little bit with a second wrench. This often resolves small leaks without full breakdown.
If the leak won’t stop, break down the joint. Remove the nut and ferrule, then look over the tubing and ferrule for scoring. Replace any damaged ferrule before reassembling.
Apply gas-grade PTFE tape only for gas-line service when the manufacturer approves. Do not coat the ferrule unless instructed by the maker. For PTFE tube showing creep, use a fitting with an internal o-ring or backup seal to stop leaks.
Put it back together with a fresh ferrule and nut when needed. Tighten by hand, then finish with the recommended number of turns. Test the joint under operating pressure and watch for slow leaks.
When To Replace Ferrules Or Fittings
Replace ferrules showing flattening, scratches, or needing extra turns to seal. Do not reuse ferrules on copper lines for dependable long-term results.
Replace the body when internal taper seats, bores, or thread surfaces are marred, or when galling has occurred on stainless parts. Source replacement ferrules, nuts, and bodies that match the original maker when possible to avoid mismatch problems.
Ferrule Types, Tubing Selection, And Material Considerations
Knowing ferrule styles and tubing choices is key to reliable seals. This guide compares common ferrule shapes and tubing materials. It helps installers and engineers avoid leaks and minimize rework.
One-piece vs two-piece ferrules
Single-piece ferrules are simple. A single part grips the tubing, creating a seal. They work well on softer walls like brass tube or some plastic tubing. This design also cuts inventory needs.
Two-part ferrule systems split the load into a front and a rotating rear ferrule. The rear ferrule decouples torque from the sealing face. This design boosts long-term sealing reliability for stainless lines and high-vibration runs. It’s popular where galling and asymmetric compression are concerns.
Symmetrical vs asymmetrical ferrules
Symmetric ferrules have a double-cone shape and install both ways. This saves assembly time when high volume matters. They can wander off-axis more easily, which may lead to minor leaks on very hard plastics.
An asymmetrical olive has a tapered cone and must be oriented the right way. It gives better axial alignment and resists off-axis movement. This makes it the top choice for precision applications where alignment and repeatable sealing matter.
Choosing tubing: metal vs plastic and PTFE notes
Metal tubing like copper tube or stainless steel offers stiffer walls that hold steady contact with the ferrule. Use clean square cuts to keep seal quality with 1/4compression sizes and other sizes.
Hard plastics like PEEK and PTFE alternatives can work when they are rigid. Softer plastics such as urethane and vinyl are poor choices without stiffening. Support inserts help when the wall is overly flexible.
PTFE tube brings strong chemical resistance and flexibility, but it tends to cold-flow under compression and heat exposure. This cold flow can create seepage over time. Use fittings designed for PTFE, secondary seals, or internal tube supports to mitigate creep when PTFE tubing is required.
| Characteristic | One-piece ferrule | Two-piece ferrule | Symmetrical ferrule | Asymmetrical ferrule |
|---|---|---|---|---|
| Best for | Soft tubing, reduced inventory | Hard tubing, high vibration | Fast assembly, reversible | Axial alignment, precision work |
| Installation sensitivity | Low | Medium (correct orientation aids seal) | Low | High (orientation is critical) |
| Resistance to galling | Low | High | Medium | High |
| Suitability with PTFE tubing | Limited without support | Better with inserts or O-rings | Possible with reinforcement | Preferred for critical alignment |
| Typical use with 1/4compression fittings | Common in general plumbing | Chosen for instrumentation and gas lines | Used in high-volume builds | Used in precision and high-tech applications |
Match ferrule geometry to tubing rigidity, system pressure, and assembly quantity. For PTFE tubing, specify fittings that include redundant sealing or use tubing inserts. Consult tubing and fitting manufacturers for final checks before installing critical lines.
Comparison: Compression Unions Versus Soldering And Other Joining Methods
Choosing the right joining method is critical for safe work, serviceability, cost, and visual finish. Compression-style fittings are ideal for tight spots and near fire-risk materials due to their no-flame installation. Soldering, on the other hand, produces compact joints that many plumbers prefer for exposed runs and permanent installs.
When to pick compression unions over soldering
Choose compression unions when flame use is unsafe or restricted. A 1/4 compression union or a 1/4 compression coupling allows for fast repairs without shutting down large systems. Compression Union Brass parts enable rapid service and repeated disassembly for checks or changes.
Compression trade-offs vs soldering
Soldered joints are often less expensive per joint and sit closer to the pipe for a neater appearance. Soldering can deliver durable, vibration-ready connections for many long-term installs. Compression unions, while larger and pricier per fitting, are appealing when rework, on-site changes, or no-spark methods are priorities.
Mixing components and manufacturer compatibility
Do not combine ferrules, nuts, and bodies from different brands unless the supplier verifies compatibility. Differences in taper angle, ferrule length, and thread pitch can break the seal. For mission-critical or high-purity runs, use manufacturer-specified ferrules and parts designed to resist galling and meet clean standards.
Practical checklist
- If space is limited or flame is hazardous, pick compression unions.
- For long exposed runs prioritizing visual finish and permanence, consider soldering.
- Match 1/4 compression union parts by maker when using 1/4 compression coupling assemblies.
- When maintenance access matters, Compression Union Brass units give repeatable reuse and easy replacement.
Wrap-Up
Compression Union Brass fittings serve as a reliable substitute for soldered joints in multiple areas like plumbing, HVAC, gas, and instrumentation work. When properly picked and installed, they ensure leak-tight performance. This is achieved without the need for heat or special tools.
Following installation basics is essential. Ensure tubing is cut clean and square and select the appropriate ferrule and size, which is essential for a 1/4compression fitting or union. Follow the manufacturer’s guidelines for tightening turns. This step is crucial to avoid tubing twist and to maintain the ferrule seal quality.
For handling minor leaks, a small tightening adjustment often is enough. Replace ferrules that show signs of distortion or work-hardening. It’s also important to avoid mixing components from different manufacturers to preserve the seal’s strength. For all your needs, refer to InstallationPartsSupply.com. They offer a wealth of information on size charts, matching ferrules and unions, and locating the right Compression Union Brass components for your project.
