Guide To The Intermittent Bonded Ribbon Production Line
An intermittent bonded ribbon production line connects fiber subunits at set intervals. This keeps fibers in an organized arrangement for mass-fusion splicing while letting the ribbon roll or fold into a compact cable shape. The design enables flexible ribbon cable production without compromising efficient fiber handling.
In some processes, bonding material is added while the subunit coating is still uncured. Diffusion can occur across the shared interface before the materials cure together. Prysmian’s FlexRibbon technology provides one commercial example, and the company dates its original design to 2018. These methods illustrate how optical fiber ribbon manufacturing and fiber optic bonding work in combination.
SZ Stranding Line FTTH Cable Production Line SZ Stranding Line
What Is An Intermittent Bonded Fiber Ribbon?
Optical fibers are arranged into small subunits in an intermittent bonded fiber ribbon. The subunits stay organized for splicing while remaining able to change shape to sit inside a cable.
The Arrangement Of Fiber Subunits And Intermittent Bonds
Each adjacent pair or group of fibers is held together by a coating. These optical fiber subunits connect to neighboring subunits at spaced bond points rather than along their full length. Six two-fiber subunits may form a 12-fiber design. The configurations range from 4 to 36 fibers, and bond spacing ranges from 10 to 1,000 millimeters.

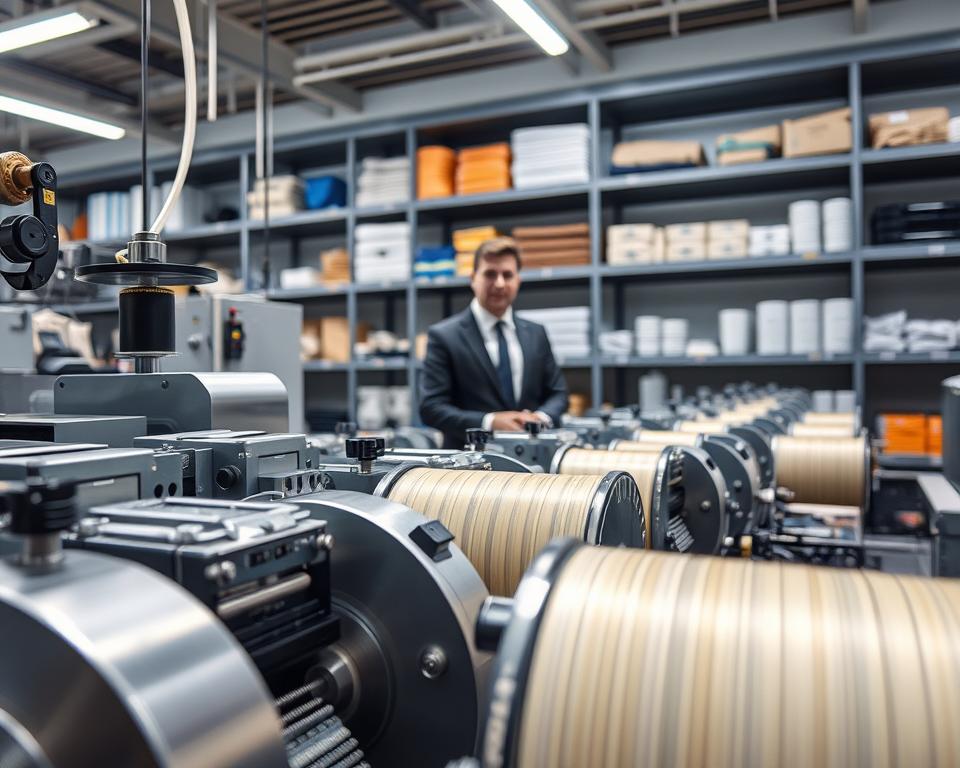

Intermittent Bonded Ribbon Production Line
Differences Between Rollable Ribbons And Conventional Flat Ribbons
In a conventional flat ribbon, the fibers remain in a single fixed plane. A rollable fiber ribbon can fold between bonds while retaining fiber alignment for mass-fusion splicing. Bending and folding are supported by the small bonding points used in Prysmian’s FlexRibbon.
How Flexible Ribbons Enable Compact, High-Density Cables
Inside a high-density fiber cable, a flexible ribbon can occupy less space. This enables cable designers to fit more fibers into a compact structure while maintaining an organized fiber layout.
Intermittent Bonded Ribbon Production Line: Process And Equipment
Throughout an intermittent bonded ribbon production process, optical fibers are laid side by side along the ribbon’s length. A first material coats groups of two or more fibers to form subunits. A second material links neighboring subunits at spaced points and leaves flexible sections between the bonds.
Organize Adjacent Optical Fibers Into Subunits
Fibers are placed beside one another according to the planned ribbon layout. The first coating material encloses each selected group and holds its fibers together as a subunit.
Deposit Subunit Coating And Intermittent Bonding Material
Fiber ribbon coating creates the subunits. A discrete coating applicator deposits bonding material between neighboring subunits at intervals rather than along their entire length.
Create Diffusion Zones Through Wet-On-Wet Application
Wet-on-wet bonding involves depositing the bonding material before the subunit coating has cured. The materials intermix across their shared interface to form a diffusion zone.
Cure The Subunit Coating And Bonds Together
A single curing step cures both the subunit coating and the intermittent bonds. Although optical fiber ribbon equipment is used for these operations, the complete equipment list, line speed, and production capacity remain unspecified.
| Process Stage | Material Or Operation | Intended Purpose |
|---|---|---|
| Fiber arrangement | Arrange fibers next to one another | Set the ribbon layout |
| Formation of subunits | Coat fiber groups with the first coating material | Keep groups of two or more fibers together as subunits |
| Bonding at intervals | Apply the second material between adjacent subunits | Connect subunits at separated bond points |
| Wet-on-wet interface | Apply bonds before the subunit coating cures | Enable formation of a diffusion zone between the materials |
| Combined cure | Set the coating and bonds together in one step | Cure the assembled ribbon structure |
Main Production Line Stages And Process Controls
The fiber ribbon production stages follow a defined order. The sequence involves organizing fibers into subunits, applying a subunit coating, placing intermittent bonds between adjacent subunits, and curing the coating and bonds together. The ribbon design must guide both optical fiber coating application and positioning of the bonds.
Gaps of 5 to 100 micrometers between subunits are described in example designs. Example intermittent bond spacing extends from 10 to 1,000 millimeters. Bond deposits may have a diamond-like outline with narrow ends and a wider center. These are disclosed examples, not fixed settings for every production line.
The selected materials, bond layout, and curing method determine ribbon manufacturing process control. The source material does not specify line speeds, curing temperatures, or inspection intervals, so these values must not be inferred.
Ribbon Flexibility, Bond Design, And Materials
Material selection and bond layout govern how the ribbon behaves during cable making and splicing. Coatings protect each fiber while permitting the subunits to flex as intended.
Select Compatible Coating And Bonding Materials
Subunit coatings and ribbon bonding materials have different functions, so their formulas need not be identical. A gradual interface can be formed by resins that intermix or remain at least partly soluble. Lower coating viscosity may also promote intermixing.
This interface forms a diffusion zone in which properties change gradually. The zone may differ in color, stiffness, surface friction, tear strength, or stretch. The disclosed thickness range is 2 to 50 micrometers, while 5 to 15 micrometers is given as a narrower range.
Control Bond Placement, Spacing, And Geometry
Bond spacing controls where fiber subunits stay connected and where they can move freely. An intermittent bond layout creates unbonded spans separating the bond points. Some bond surfaces have a saddle shape made by intersecting convex and concave curves.
Maintain Fiber Organization While Balancing Ribbon Flexibility
Between bonds, unbonded spans let a flat ribbon transform into a rolled, curled, or folded form. A flexible fiber ribbon design flexes during cable installation while keeping fibers organized for splicing.
Quality Checks For Consistent Ribbon Production
Instead of using assumed pass limits, dependable fiber ribbon quality checks focus on defined features. Design factors named in the patent include bond spacing, subunit gaps, diffusion-zone thickness, and bond shape. However, it does not specify inspection methods or acceptance limits.
Inspect Bond Continuity And Subunit Alignment
Check that intermittent bonds connect adjacent subunits at planned locations and leave unbonded lengths between connections. Review subunit alignment and gaps because shifts can affect ribbon shape and bond geometry.
Assess Ribbon Flexibility And Rollability
Assess ribbon rollability by examining how the ribbon bends and gathers without changing fiber order. Throughout the ribbon design, compare bond spacing and flexibility. Treat these comparisons as design checks rather than universal production tolerances.
Verify Fiber Identification And Ribbon Configuration
Confirm each fiber’s position through fiber color coding. Blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua make up a widely used 12-color sequence. For ribbons containing more than 12 fibers, this sequence may be repeated.
Cable Applications, Integration, And Splicing Benefits
By folding within a cable, intermittently bonded ribbons allow more fibers in a compact design. Prysmian says FlexRibbon supports high-density ribbon cable designs, smaller diameters, and improved fiber duct utilization.
Enable High-Density Cable Designs And Better Duct Utilization
For indoor, outdoor, and indoor/outdoor applications, Prysmian provides FusionLink and MassLink with FlexRibbon. Dry water blocking is used in FusionLink, which comes with either 250 μm or 200 μm ribbon. EcoSpan aerial cable supports spans of up to 300 feet under NESC Heavy loading conditions. As a small-diameter outdoor option, FlexDrop can support up to two 12-fiber ribbons.
Enable Mass-Fusion Splicing And Faster Deployment
Multiple ribbon fibers, often 12 at a time, are joined in one operation through mass-fusion splicing. On compatible ribbon routes, this method can reduce splice time. When connecting to loose-tube cable, technicians split ribbon fibers and individually splice them with a single-fiber splicer.
Review Indoor, Outdoor, Access, And Broadband Applications
Ribbon cable is used in point-to-point networks, indoor FTTH systems, MTP wiring-box links, and urban trunk routes. Choosing indoor and outdoor fiber cable to suit the route aligns its construction with building, aerial, and underground requirements.
Conclusion
An intermittent bonded ribbon line guide brings together fiber layout, bond placement, curing, and inspection. The result is a flexible optical fiber ribbon that remains orderly during handling yet can roll or fold into compact cable designs.
The process involves depositing bonds while the subunit coating is still uncured. Before they cure together, the materials develop a diffusion zone. Reliable fiber cable manufacturing is supported by careful control at every stage.
Mass-fusion ribbon splicing is also supported by flexible ribbons, helping crews splice many fibers in one operation. FlexRibbon is described by Prysmian as suitable for various cable designs, including compact configurations with up to 6,912 fibers.
For manufacturers and network planners, the priority is to coordinate fiber alignment, bond strength, and rollability. This balance may make cable packaging simpler while ensuring ribbons remain prepared for efficient installation and splicing.
